Rapid Prototyping with ForeUI

ForeUI provides an easy-to-use environment to rapidly create prototype of your website or software. You can do most of things with mouse drag-and-drop, single click or double-click. ForeUI support various UI styles for prototyping, wireframe is the default UI style.

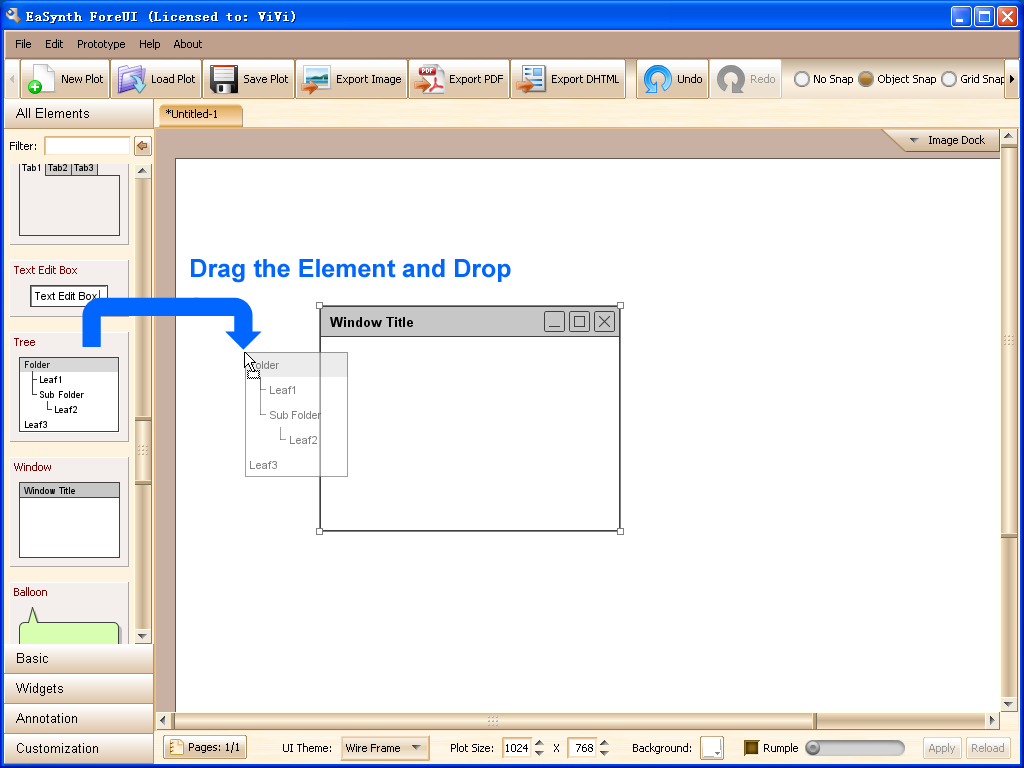

Drag and Drop

You can simply drag the element from the list and drop it into the working area. You can also drag the elements in the working area to move or resize them. There are many predefined elements so that you can rapidly create a mockup for complex web site or software.

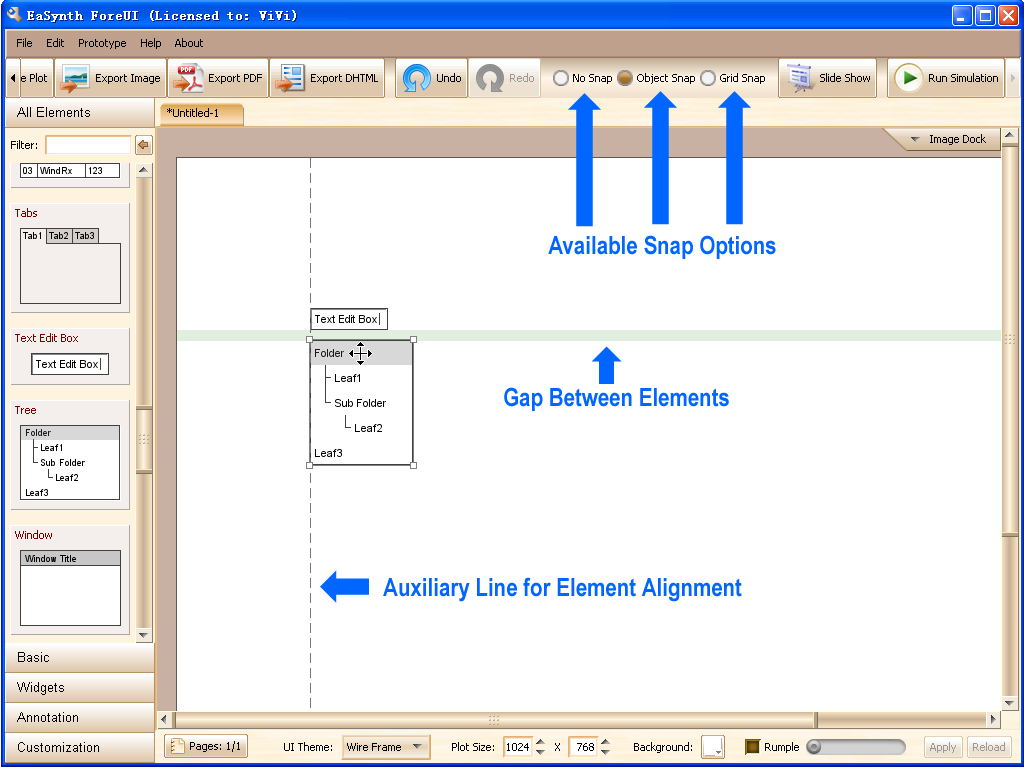

Snap System

In order to help laying out the elements, ForeUI provides a snap system, you can choose one of the three snap options.

Object snap is the default option, it helps you line up elements relative to other elements. When you drag one element close to another it will be activated and show some auxiliary lines.

Grid Snap can help you to layout the elements relative to small grids instead of other elements.

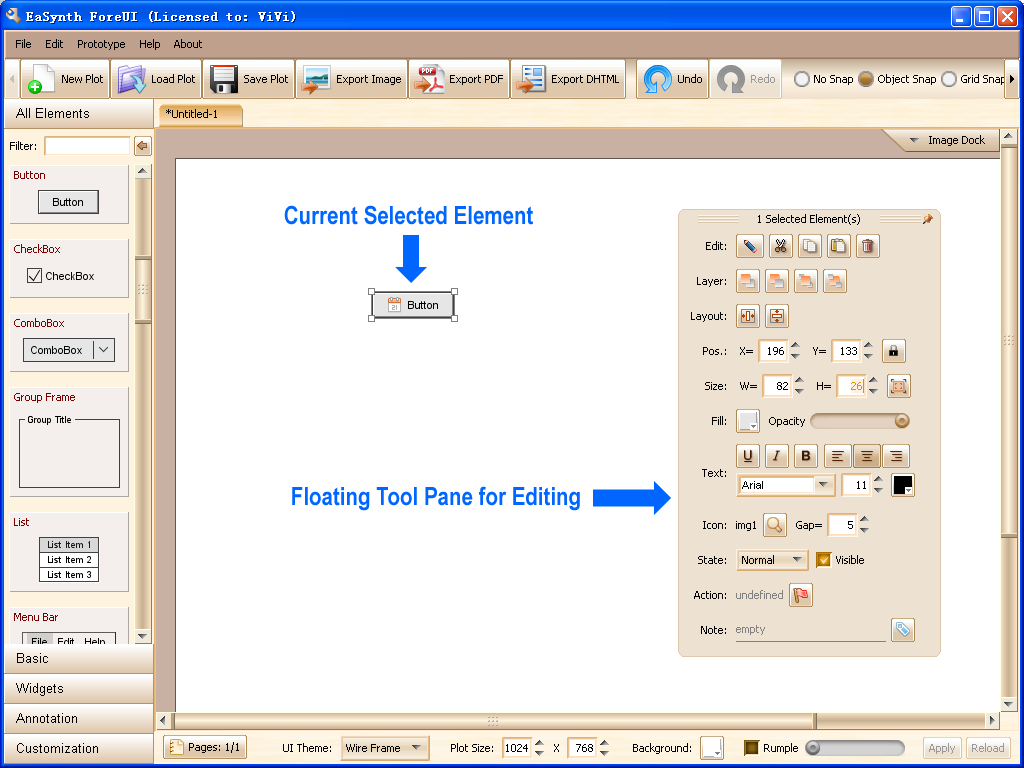

Floating Tool Pane

ForeUI will show up a floating tool pane when you select one or more elements in the working area. There are many tools in the floating tool pane, so that you can work on the current selection. With its help you can create the prototype in your mind step by step.

Each element can be configured, the content within the floating tool pane will be changed dynamically when you change your selection.

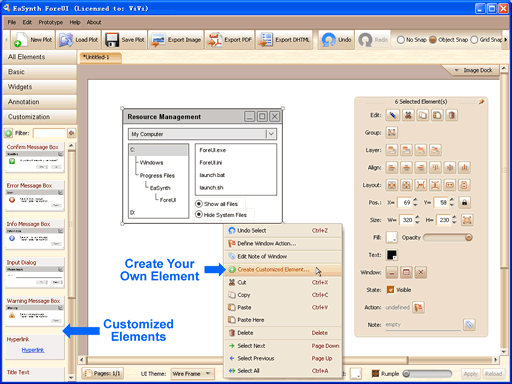

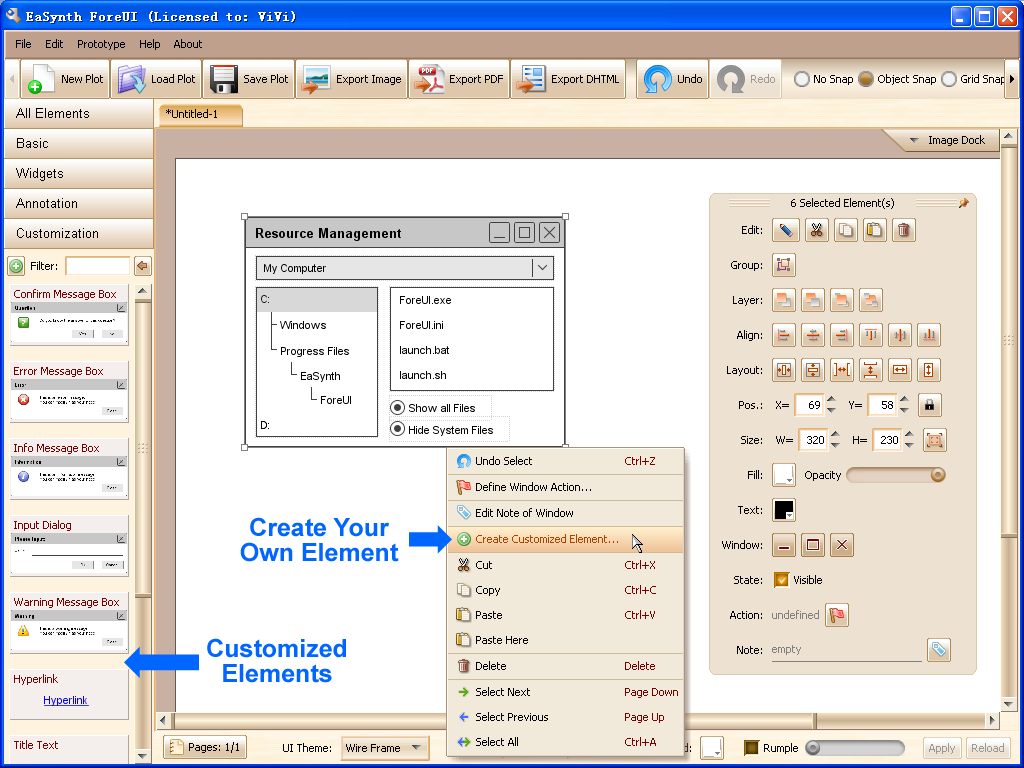

Create Your Own Element

Need more elements to create prototype? You can wait for our new release, or just make your own element! You can make a cool component in the working area and select all its component elements, right clicking the mouse you will see the "Create Customized Element" item in the popup menu. All customized elements will be placed in "Customization" category, they are also visible in the "All Elements" category.

Interested? Try it now!

You can download ForeUI, or launch the online demo now.
