How-To > Use Expression

When defining the behavior, we will be asked to input values frequently. Some input fields support expression, which means you can use a sentence to represent the value in design phase, and it will be replaced with the real value in simulation.

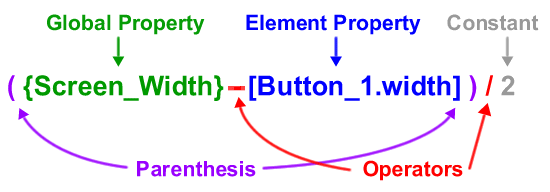

An expression can contain constants, properties (element property or global property) parenthesis and operators. The figure below shows an example of expression:

expression

Although the expression is in code form, usually you don't have to input them letter by letter, ForeUI provides some tools to help you create the expression quickly.

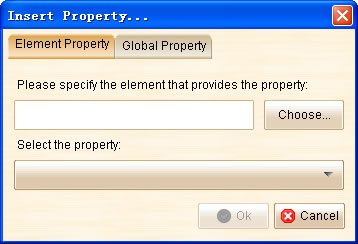

All input fields that support expression will has a button nearby. This button can bring out the property chooser, which will help you to insert property into the field. The property chooser looks like this:

property_chooser

There are two tabs in the property chooser window which allow you to browse element property or global property.

Insert Element Property

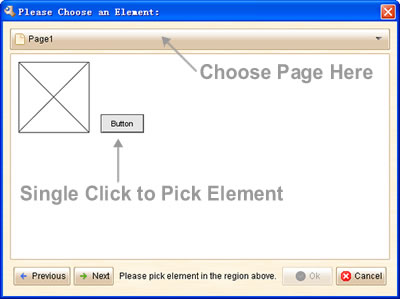

To browse the element property, you need to specify an element first. Make sure the "Element Property" tab is selected and click the "Choose..." button in property chooser window to pick the element, the element chooser will pop up:

element_chooser

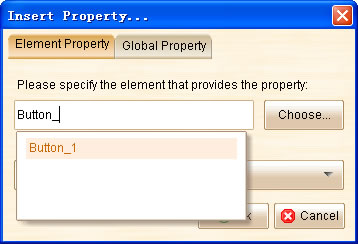

You can also input the element id in the element field:

pick_element_by_id

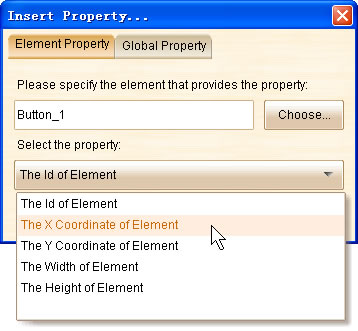

Then you can choose the property in the drop-down list.

choose_elem_property

Insert Global Property

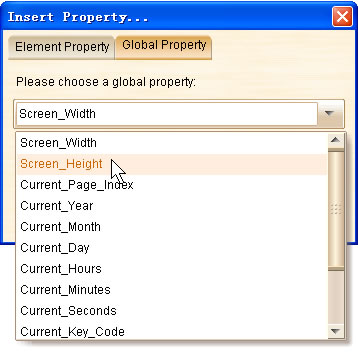

To insert global property, just click the "Global Property" tab in the property chooser window and select the property in the drop-down list:

insert_global_property

Finish the Expression

You can insert multiple properties into the input field, then use operators, parenthesis, and constants to finish the expression.
