GUI Introduction > Community Window

ForeUI is integrated with its community site (http://www.ForeUI.net/), thus you can upload or download resources in ForeUI directly. To open the community window, just click the "Resource Sharing" button on the left bottom corner.

open_community_window

After clicking the button, the community window will show up:

community_window_overview

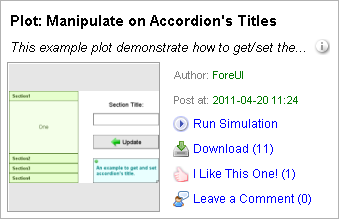

There are two views in the community window, which allow you to download or upload resource. These two views can be switch with the "Download Resources" and "Share My Resources" tabs. The default view is for resource downloading. Here you can browse all elements, libraries and plots page by page, and download the resource you need. Each resource will be presented like this:

listed_resource

Clicking the small icon with "i" letter inside will display the full description of this resource. You can also see four hyperlinks in the listed resource block:

•	Run Simulation: preview the resource in your default web browser.

•	Download: download the resource to your hard disk.

•	I Like This One!: vote this resource up if you like it.

•	Leave a comment: comment on this resource.

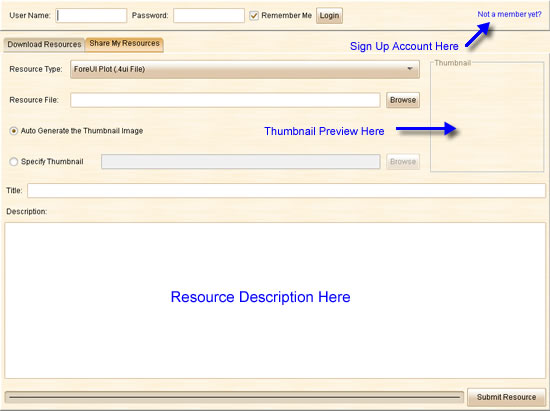

If you like to submit your resource to the community, please click the "Share My Resource" tab and a submit form will be displayed. You can fill in the form and submit your plot, element or library to the community site, thus others can take benefit from your work. Before submitting resource you need to sign up an account and login in the top bar.

submit_resource
